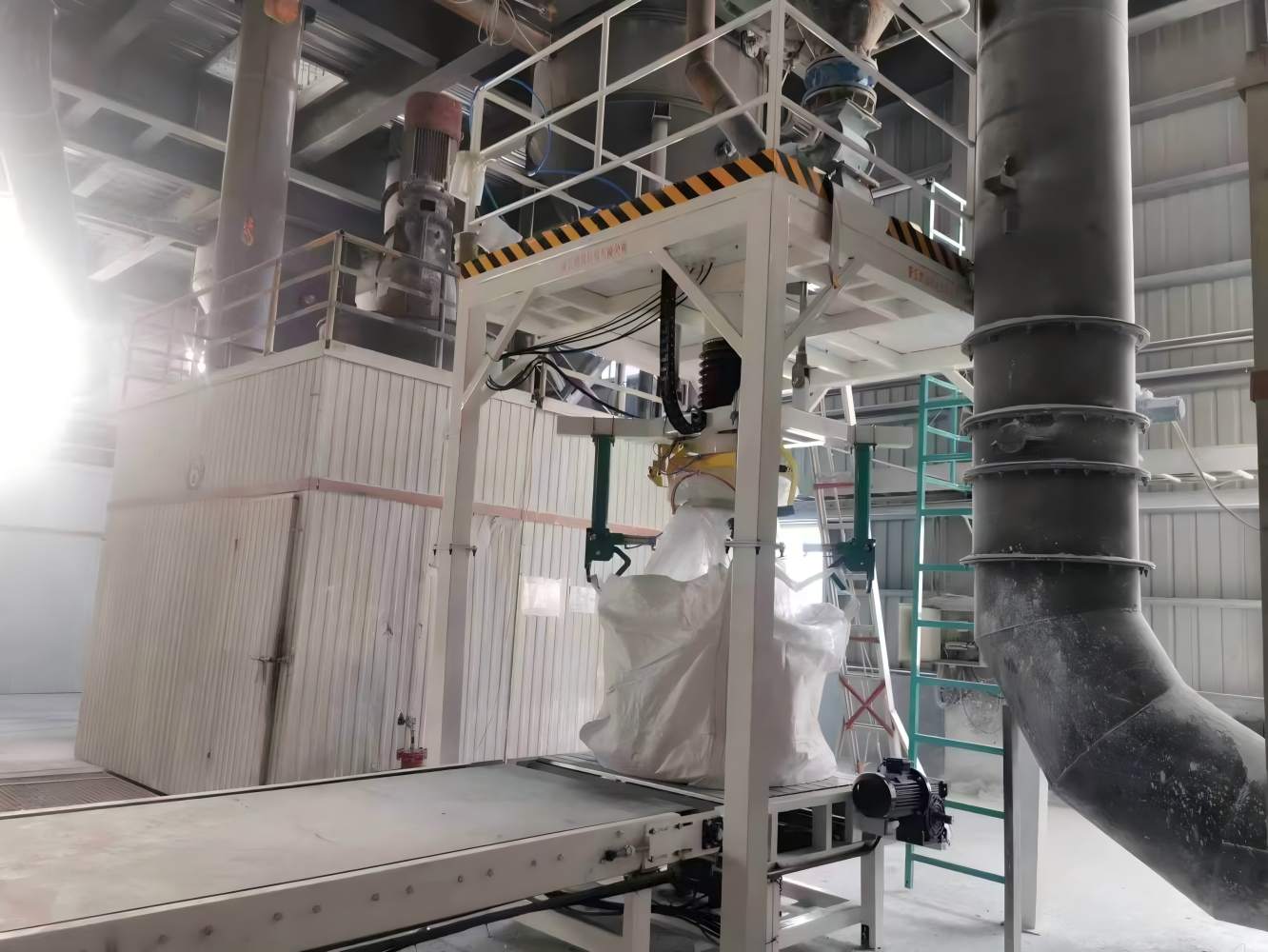

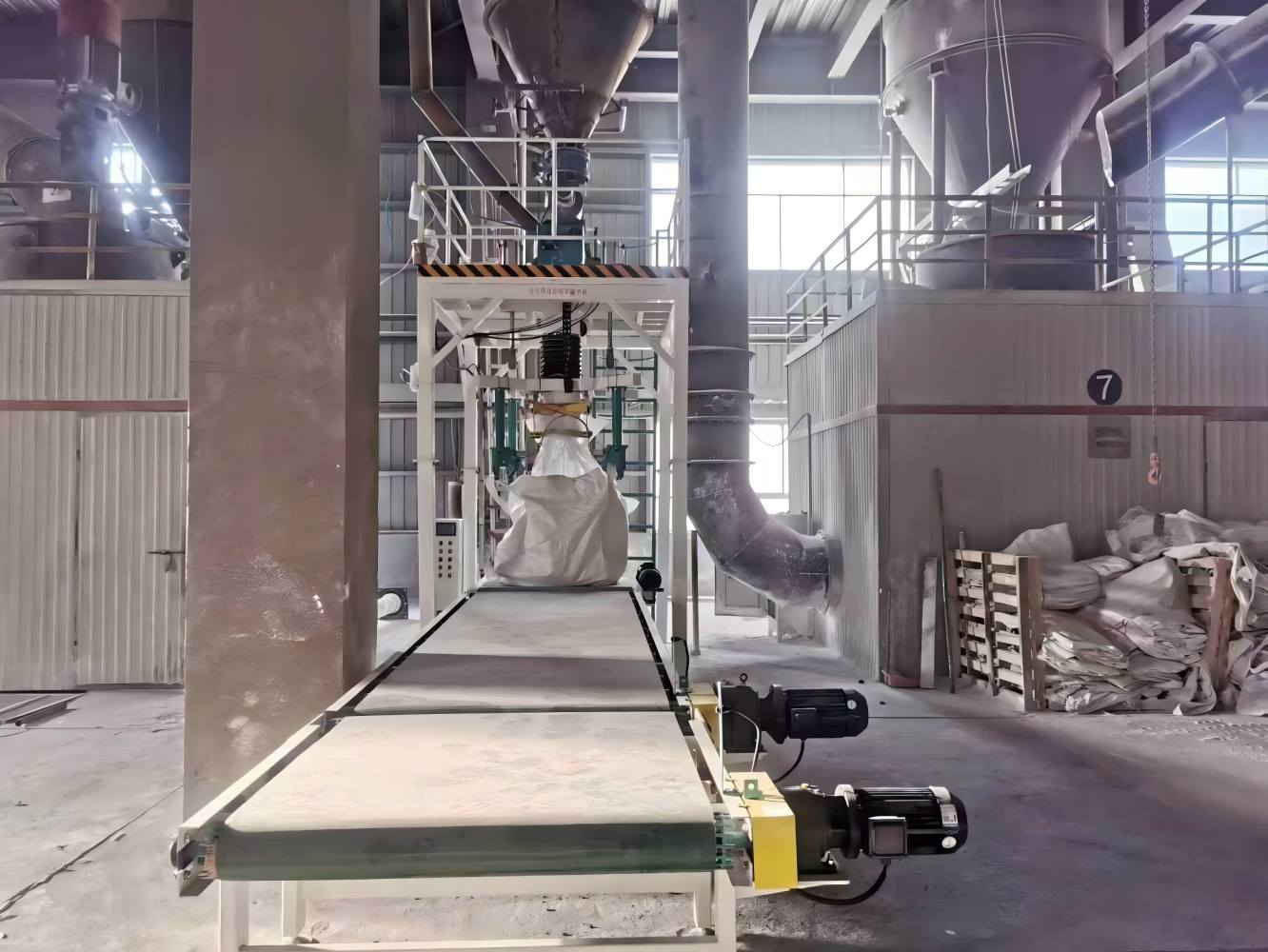

Ton Bag Packaging Machines, also known as Jumbo Bag Packaging Machines.
They are categorized by the material being packaged, including Powder / Granular / Paste material ton bag packaging machines, and Vacuum powder ton bag packaging machines.
Feeding methods include Gravity, Vibratory, Screw, and Belt feeding.
Typical packaging sizes range from 500 to 2500 kg.
Ton bag packaging machines are automated quantitative filling systems that integrate mechanical, electrical, and pneumatic functions. They are primarily controlled by PLC logic.
During operation, the weighing sensor outputs relay signals through the weighing controller. The PLC issues commands to control the mechanical movements of pneumatic valves and motors, achieving quantitative filling of materials into the bags.
Combined with conveying, lifting, and sealing systems, these machines can form an automated packaging line.
Ton bag packaging machines are widely used for quantitative packaging of granular and powdered materials in industries such as electricity, coal, petrochemicals, chemicals, fertilizers, grain, feed, cement, metallurgy, environmental protection, building materials, pharmaceuticals, ports, and bioengineering.
