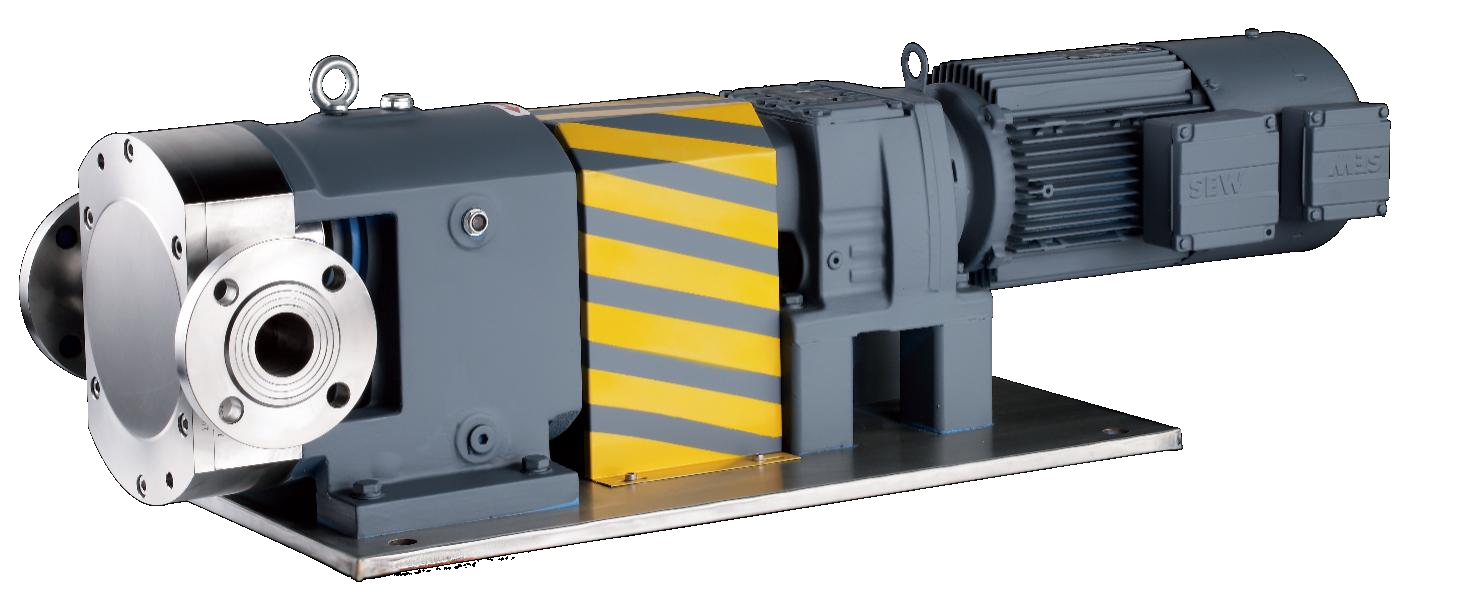

Rotary Lobe Pump

Operating conditions:

Product: Pesticide

Viscosity: 2900cP

Flow rate: 0.5-1m3/h

Head: 20m

Pump information

Product name: Rotary lobe pump

Model: 40BV12-2

Displacement: 0.15L/r

Rotor type: Tri-lobe rotors

Inlet/ Outlet: 1 inch/ 1 inch

Port connection: Clamp

Port direction: Horizontal

Seal type: Single face balanced mechanical seal

MOC

Casing: SS304

Rotor: SS304

Shaft: Stainless steel composite material

Elastomer: PTFE

Mechanical seal: TC VS TC

Bearing: Bearing steel

Gear box: HT200

Base plate: Standard

Recommended Driving

Type: Geared reducer with Motor and cooling fan

Motor: 1.5kW, 220V/60Hz/3Ph, IP55

Motor brand: Chinese brand

Inverter motor speed: 1450 r/min

Geared reducer output speed: 260r/min

Scope of supply

Complete set included motor, gear reducer, coupling, coupling guard, base, rotor pull tool.

Packing information for complete pump

Approx. Dimensions in mm: 800(L)×400(W)×750(H)

Approx. Weight:104kg
